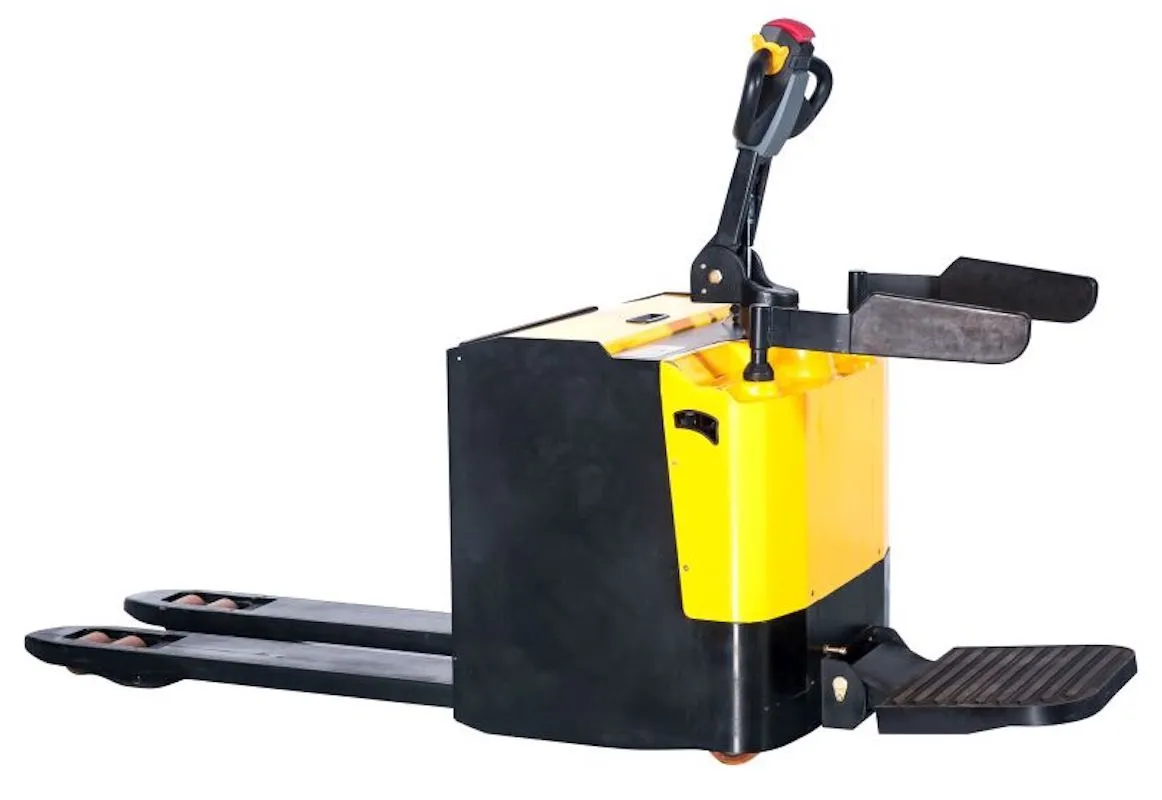

Model #S02-01-EWP20
Capacity kg 2000
Load Center mm 600
Lifting Height mm 85 - 200
Max Fork Lifting Height mm 200
Lowered Height of Fork mm 85
Standard Fork Width mm 580
Fork Length mm 1150
Fork Thickness mm 54
Fork Width mm 185
Overal Length mm 2378 / 1838
Overall Width mm 800
Min. Turning Radius mm 1700
Aisle Width Wth 800*1200mm Pallet mm 2858 / 2368 (without platform)
Aisle Width With 1000*1200mm Pallet mm 2946 / 2456 (without platform)
